Supporting equipment includes:CNC machining machines, steel plate bending machines, laser cutting machines, etching machines, and other large steel structure and machining equipment
Or work experience in a national first-class design and research institute
Examples of process design for nearly 20 hot-dip galvanizing production lines, and actual performance of 8 environmentally friendly pickling fully automatic hot-dip galvanizing production lines successfully put into production and operation.
After the warranty period expires, the equipment enters a paid service period, and the manufacturer only charges cost fees
According to the needs of users, the hardware design, software development,system in- tegration and other aspects of the equipment are customized to meet the unique needs of users and application scenarios
Years Experience
factory Area
R&D Engineers

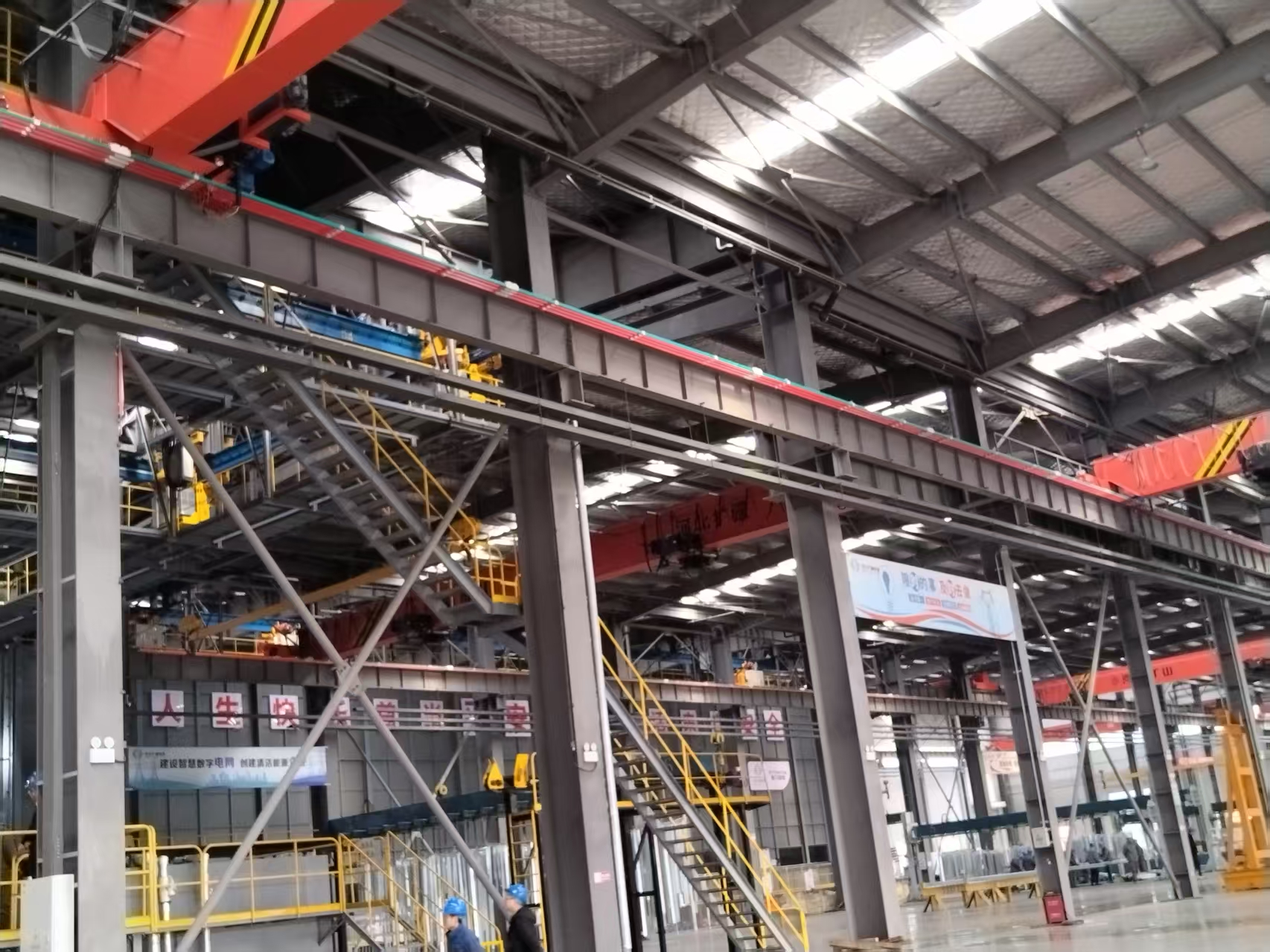

Hot-dip GalvanizingFurnace Project
Established for 30 years, with a team of over 30 people, and exports to more than 50 countries
Examples of process design for nearly 20 hot-dip galvanizing production lines, and actualperformance of 8 environmentally friendly pickling fully automatic hot-dip galvanizingproduction lines successfully put into production and operat

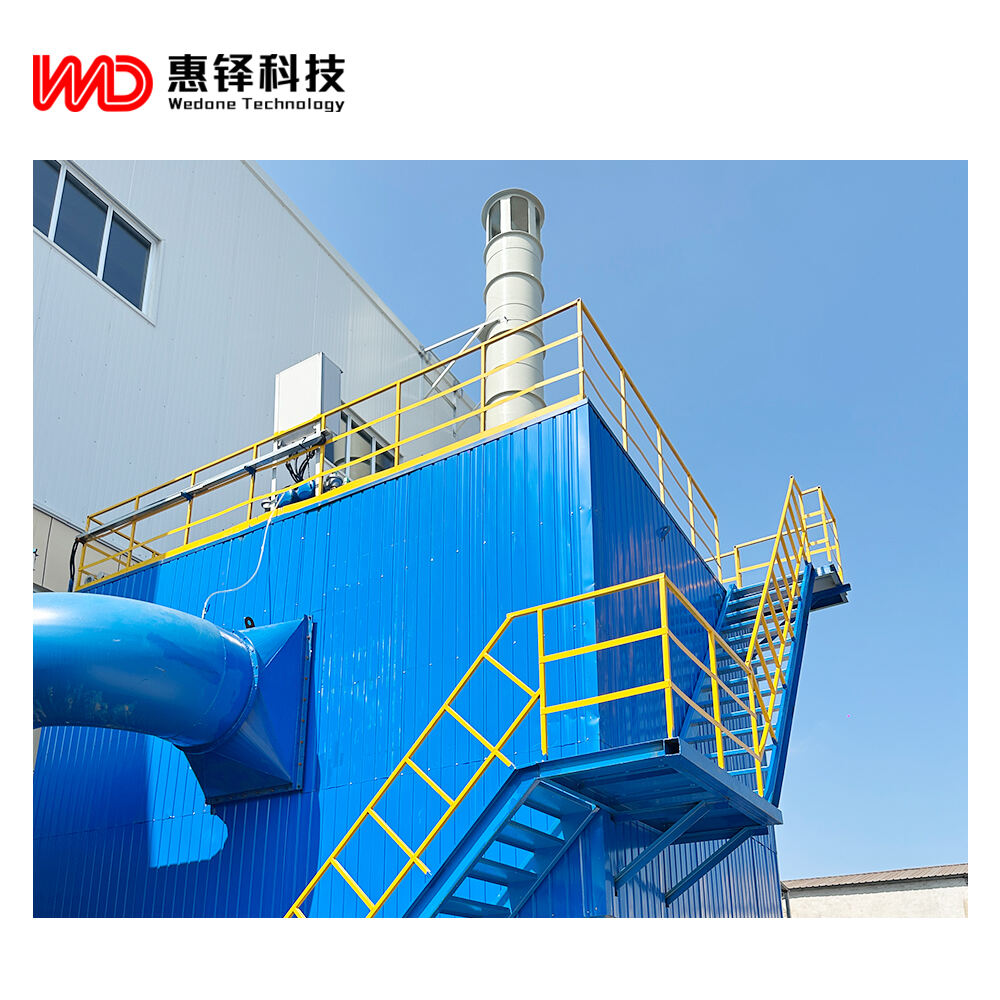

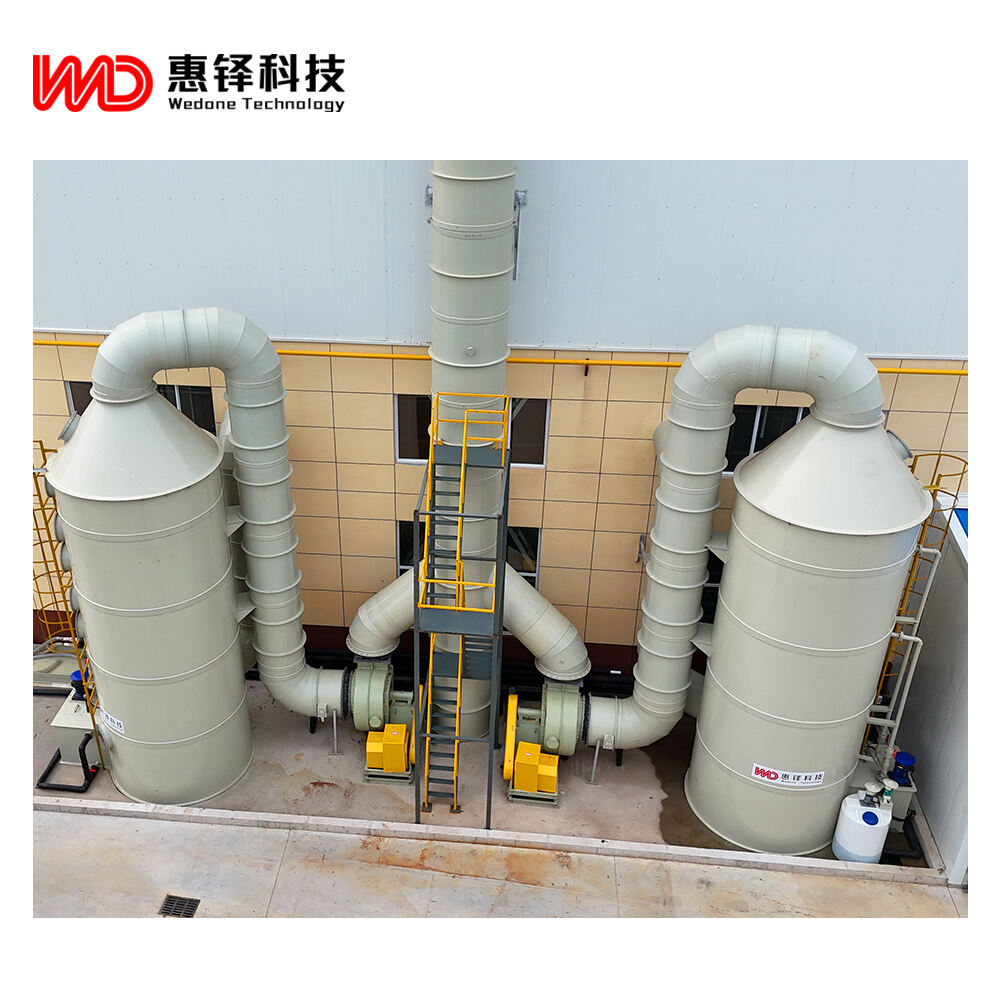

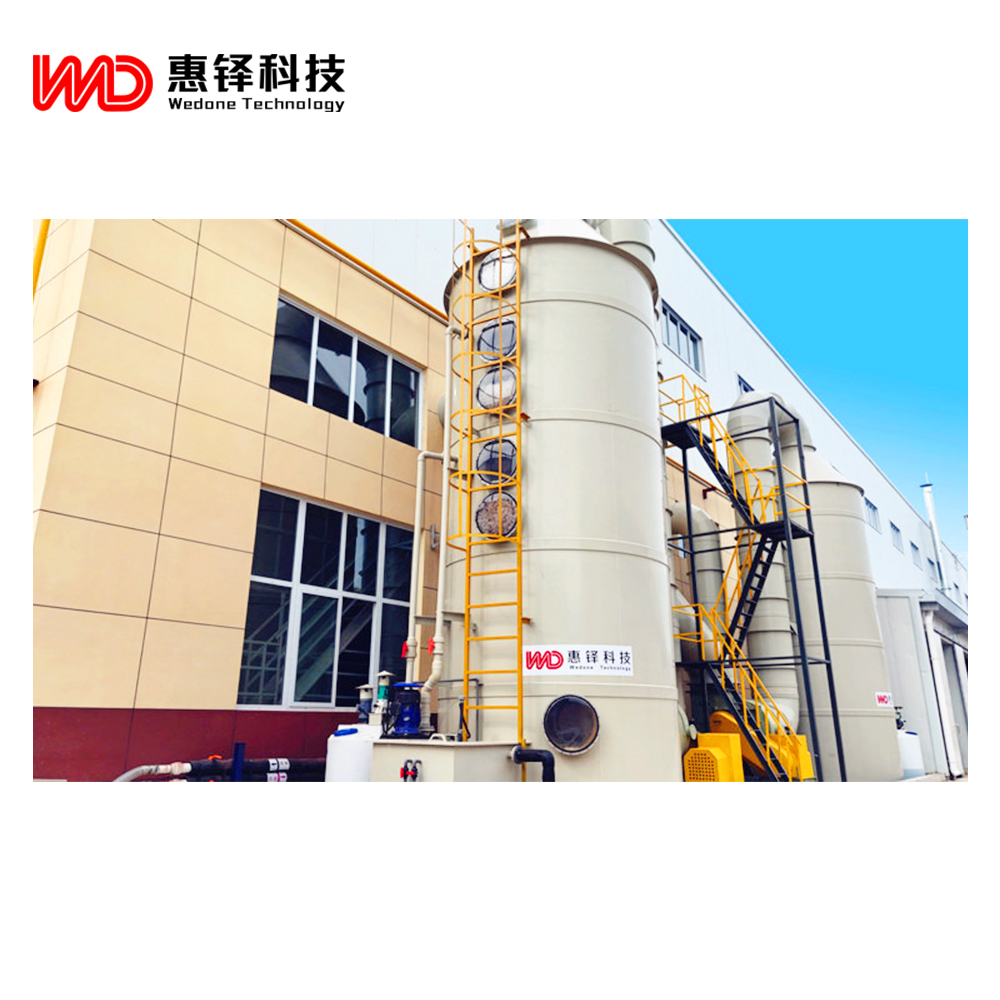

An Acid Gas Scrubber is an environmental protection device used to treat industrial waste gases. It removes harmful acidic gases like hydrogen sulfide, hydrochloric acid, and sulfur dioxide using chemical absorption or water washing methods, ensuring emissions meet environmental standards and improve air quality.

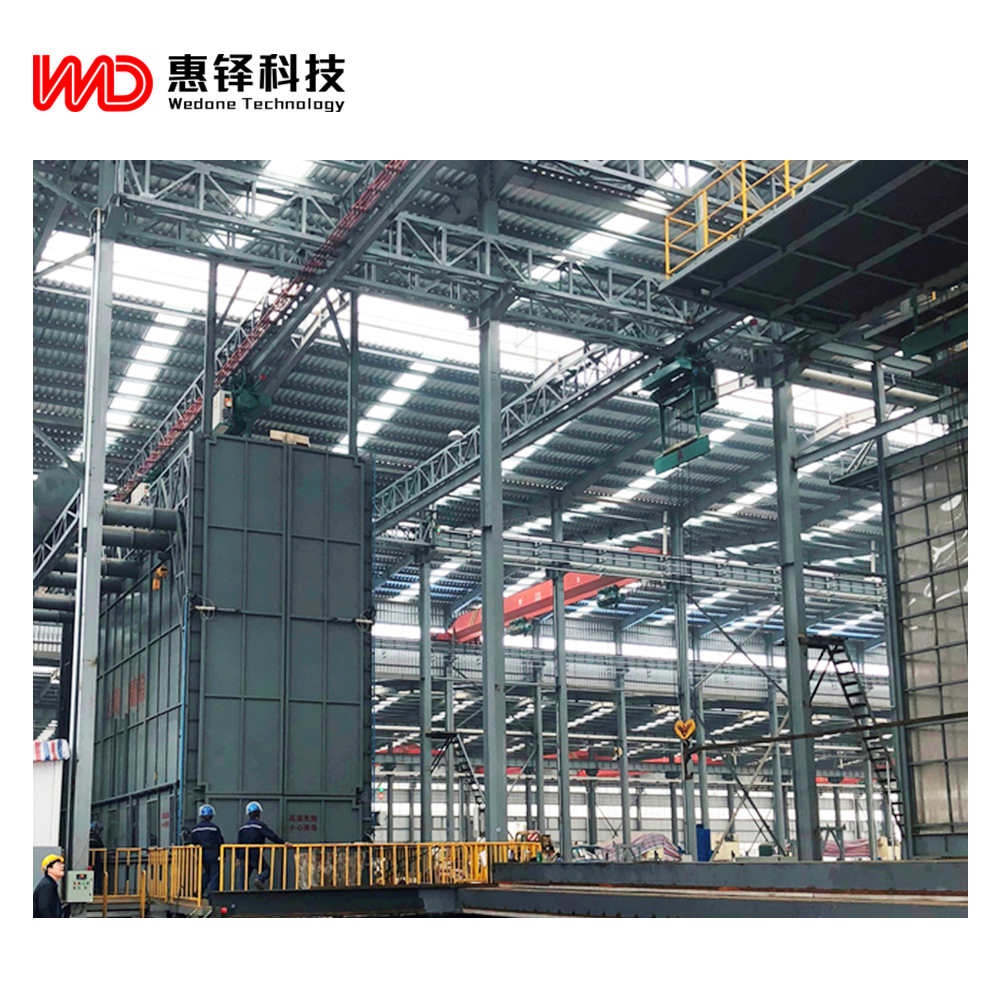

1.Custom Plant Layout Design for Maximized Operations.

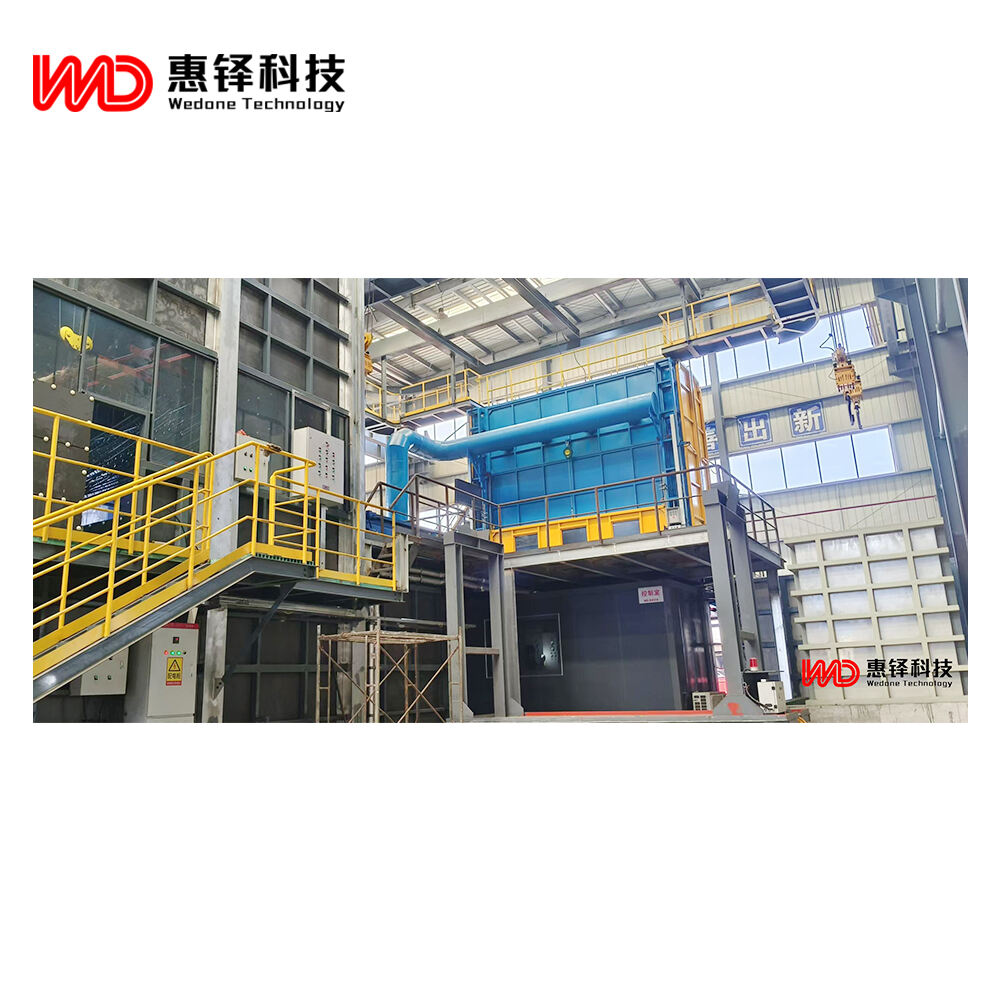

2.Full-line Galvanizing Equipment Design, Engineering,Manufacturing, Installation, Commission
The hot-dip galvanizing industry is widely applied in sectors such as construction, steel fabrication, automotive manufacturing, infrastructure development, power transmission, and bridge construction. It plays a vital role in protecting steel structures from corrosion, enhancing durability, and extending service life in harsh environments.
1.Enclosed pickling chamber in case unorganized discharge of acid mist
2. Automatic Logistic RGV system for Pickling Pretreatment.
3.Intelligent hot-dip galvanizing furnace energy management.
4. State-of-the-art environment protection equipment with low emission.
5.IOT based control and information system for galvanizing production line.
1.Material: AGXG08 Low Carbon Steel
2.With 2 top reinforcing edge plates. Round all vertical and horizontal corners (R=200mm)
3.Plate Thickness: 50/60mm
4.Cold bending, no corner welds.
5.Ultrasonic test by the third party, inspection report provided with the shipment . Comply with GB11345-2013 and other related manufacturing standard.
6.Annealing Treatment available before shipment (Option)

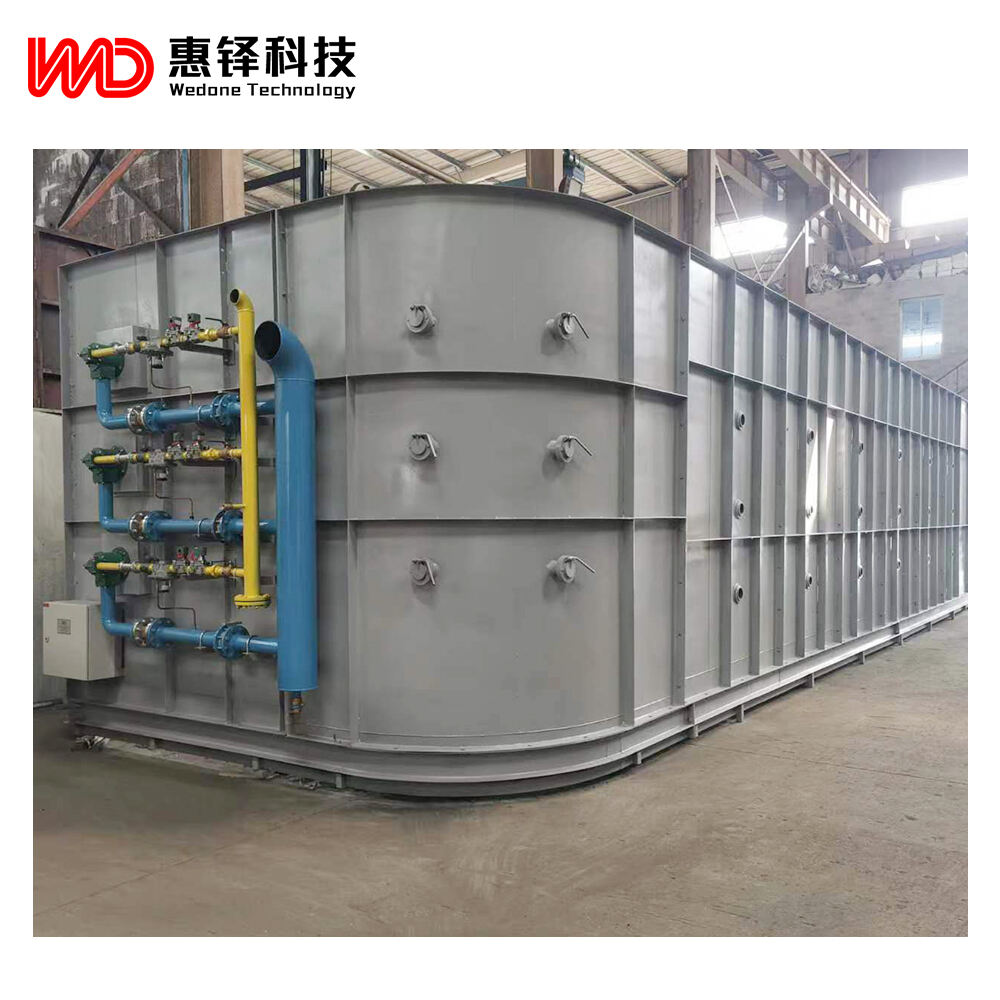

1.Professional thermal transfer balance calculation and computer aided flow field design to optimize
furnace combustion chamber and burner layout design.
2.Custom made ECLIPSE ultra low Nox emission FN-SER burner for Hot- dip Galvanizing application (Nox ≤ 50mg/m³@ 3% O2)
3.High Velocity Pulse-fired Combustion System ( flame outlet speed : 165m / s ) enhances convective heat transferring. Combustion configure comply with US NFPA86C and Europe EN746-II Safety Codes
4.Kettle is equipped with insulated heat shields to eliminate the danger of hot spots.
5.The furnace is lined with nanomaterials insulation and a ceramic fiber wall, making sure few heat loss from the outer furnace walls. The temperature rising of the outer wall surface is no more than 25℃ , within the rated production capacity of the furnace.
6.High thermal efficiency (65%);Gas consumption saving up to 30% compared to conventional furnace
7.State-of-the-art modular design and the factory pre-construction make easy & fast on-site installation.
8.Siemens PLC based intelligent HDG control and management system featuring ZINC Auto Melt, gas leakage and ZINC leakage warning devices, self-troubleshooting, remote diagnosis and supervision function, providing 7X24 around clock Mobile APP technical support.

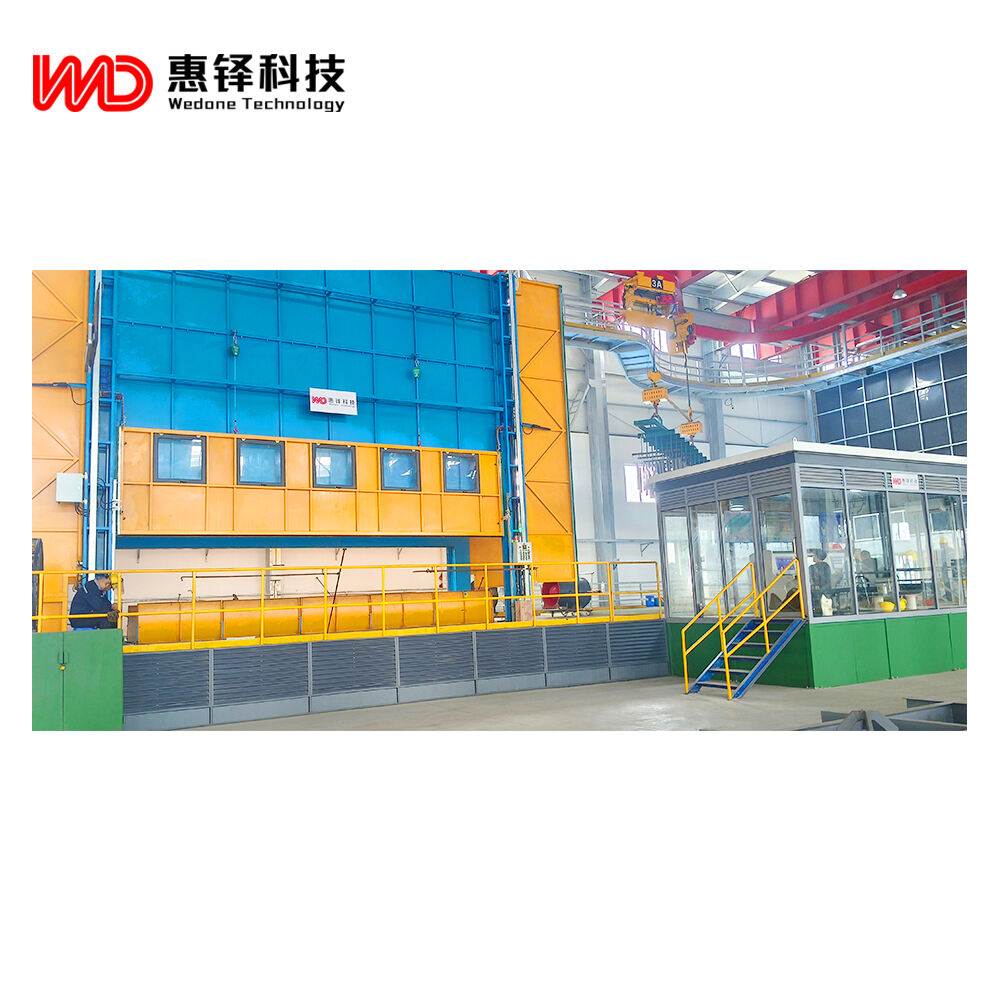

1.Capture more than 95% of white fume
2.Heavy duty steel construction.
3.Easy accessibility for skimming ash and maintenance.
4.Automatic door control, door positions are interlocked with extractor VFD control to save energy.
5.Keep the galvanizing workshop clean.
